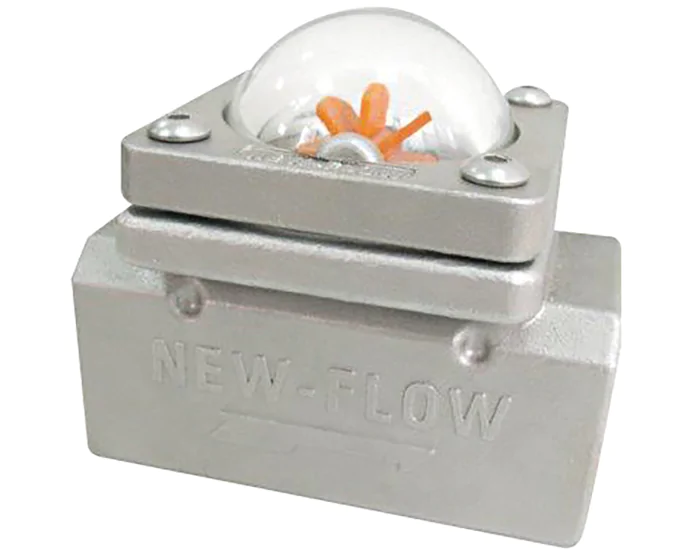

Rotor sight glass controller, stainless steel body CF8M (1.4408), tempered glass dome, PP rotor. PS: 16 bar, TS: 80°C, G threaded.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 76.0 |
| Gasket | FKM |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 12 |
| Connections | BSP FF |
| TS max (°C) | 80 |
| TS min (°C) | -5 |
| Sight glass type | With rotor |
| Direction | Unidirectional |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) DN8 - 1/4'' | 224100 | S1013717 |
€117.06
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN10 - 3/8'' | 224101 | S1013718 |
€126.09
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN15 - 1/2'' | 224102 | S1013719 |
€141.13
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN20 - 3/4'' | 224103 | S1013720 |
€177.30
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) DN25 - 1'' | 224104 | S1013721 |
€177.30
(excl. btw)
|
add to cart |
